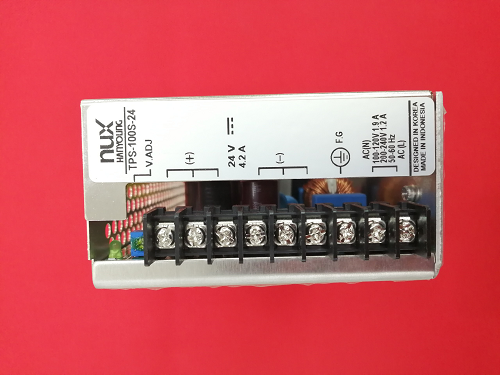

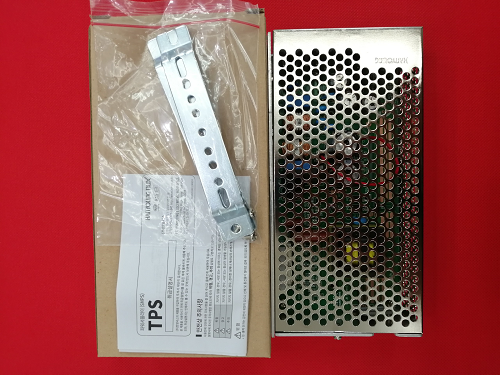

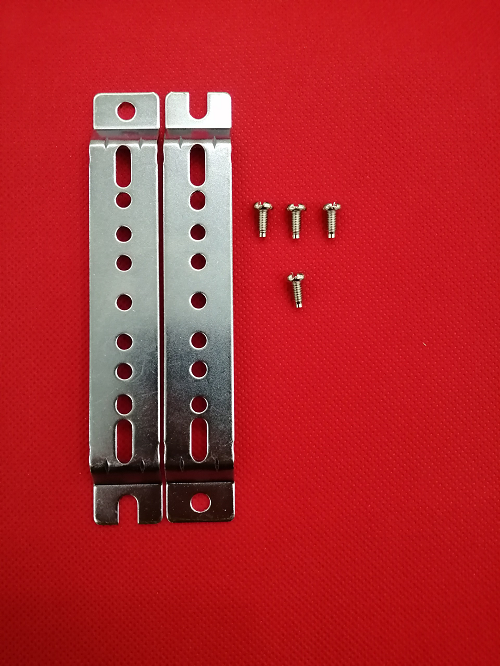

Bộ nguồn Hanyoung TPS-100S-24

Model

TPS-100S-05

TPS-100S-12

TPS-100S-15

TPS-100S-24

Output

Rated output voltage

5 V

12 V

15 V

24 V

Rated output current

20 A

8.4 A

6.7 A

4.2 A

Rated power output

100 W

100.8 W

100.5 W

100.8 W

Peak current

27 A

13 A

10 A

6 A

Circuit voltage fluctuation rate

±25 ㎷

±36 ㎷

±45 ㎷

±72 ㎷

Load voltage fluctuation rate

±50 ㎷

±36 ㎷

±45 ㎷

±72 ㎷

Ripple/noise

50/100 ㎷ max

80/170 ㎷ max

80/170 ㎷ max

100/200 ㎷ max

Ambient temperature fluctuation

50 ㎷

120 ㎷

150 ㎷

240 ㎷

Running time

500 ㎳ max (110 V AC, Io = 100 %)

Remaining time

20 ㎳ min (110 V AC, Io = 100 %)

Voltage fluctuation range

4.75 - 5.25 V

11.4 - 12.6 V

14.25 - 15.75 V

22.8 - 25.2 V

Voltage setting range

±0.5 % max (Rated output voltage)

Input

Input voltage

100 – 120 / 200 - 240 V AC

Input frequency

50 - 60 ㎐ (47 - 63 ㎐)

Current (A)

110 V AC

1.88

1.75

1.75

1.69

220 V AC

1.0

0.93

0.91

0.90

Efficiency

220 V AC

80 %

87 %

87 %

90 %

Inrush current

110 V AC

25 A Typ. (Ta = 25 ℃, Io = 100 % at COLD START)

220 V AC

50 A Typ. (Ta = 25 ℃, Io = 100 % at COLD START)

Leakage current

110 V AC

3.5 ㎃ max

220 V AC

3.5 ㎃ max

Protection function

Over current protection

Protective function performed within 110 ~ 170 % of the rated output current

Over voltage protection

5.75 - 7.0 V

13.8 - 16.8 V

17.3 - 21 V

27.6 - 33.6 V

Overheating protection

140 ℃

Protection of output short

Auto Re-start

Output signal LED

Green LED

ETC

Dielectric strength

2,700 V AC for 1 min, Detection current = 10 ㎃, (Input – Output)

1,500 V AC for 1 min, Detection current = 10 ㎃, (Input – FG)

500 V AC for 1 min, Detection current = 10 ㎃, (Output – FG)

Insulation resistance

50 ㏁ min. (Input – Output, FG), (Output – FG)

Environment

Ambient temperature

-20 ~ +50 ℃ (Refer to the derating curve of output load)

Ambient humidity

20 ~ 90 % R.H (With no condensation)

Storage temperature

-30 ~ +85 ℃ (With no condensation)

Vibration resistance

10 - 55 ㎐, peak amplitude 0.375 ㎜, 2 hours for each of 3 directions (not in motion)

Shock resistance

150 ㎨, 3 times for each of 6 directions (State of packing)

Weight

approx. 650 g (Excluded the weight of box)

Model

Code

Information

TPS-

TPS Power supply

Power output

15

15 W

30

30 W

50

50 W

75

75 W

100

100 W

150

150 W

220

220 W

350

350 W

450

450 W

Number of output voltage

S

1 Output

Output voltage classification

05

5 V DC (220W, 350W, 450W are excluded)

12

12 V DC

15

15 V DC (350W, 450W are excluded)

24

24 V DC

48

48 V DC (15W, 30W, 50W, 75W, 100W, 150W, 220W are excluded)

2405

CH1 : 24 VDC / CH2: 5 V DC

2412

CH1 : 24 VDC / CH2: 12 V DC

2424

CH1 : 24 VDC / CH2: 24 V DC
