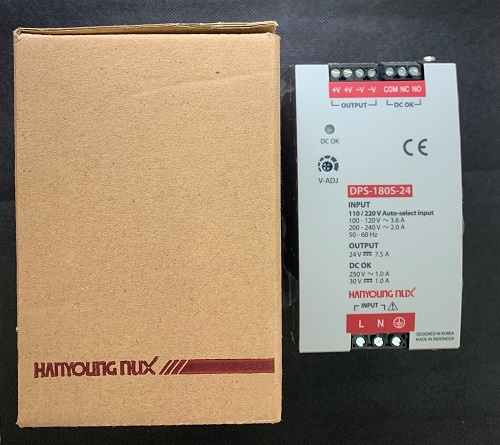

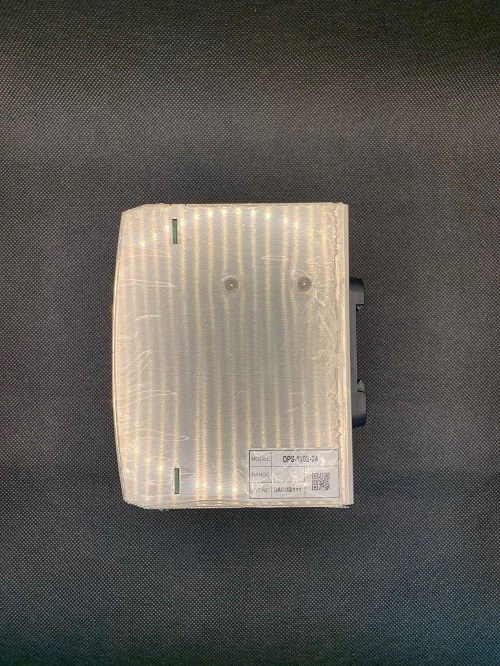

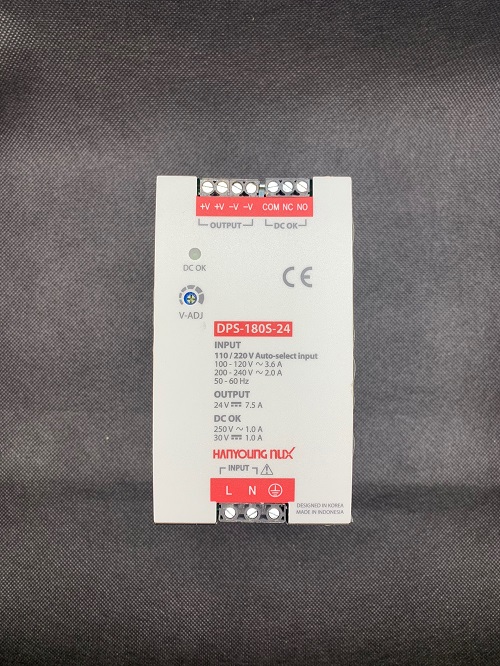

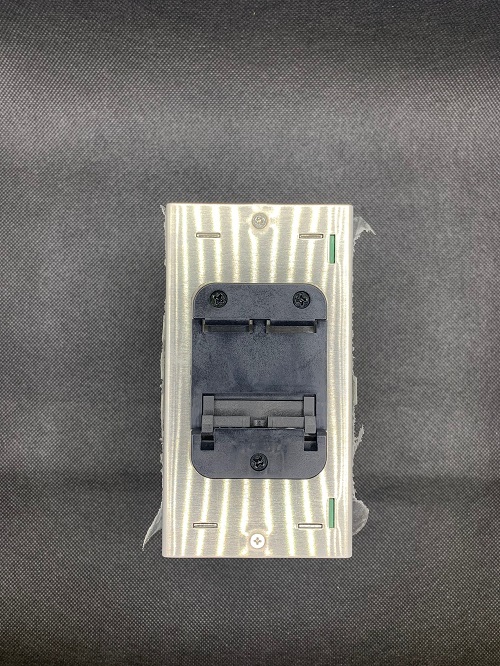

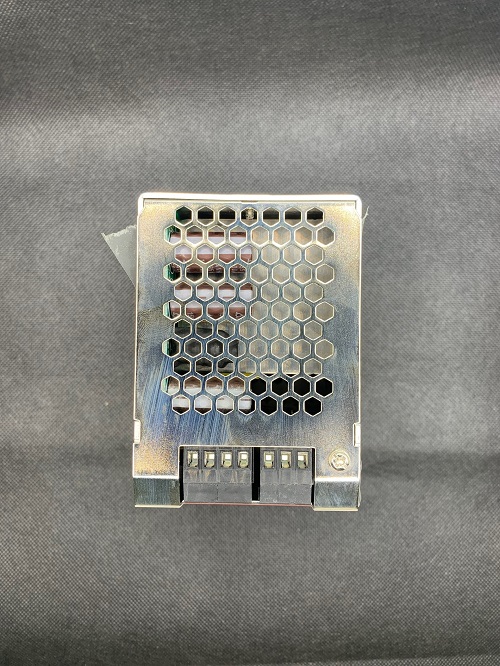

Bộ nguồn Hanyoung DPS-180S-24

Model

DPS-180S-24

DPS-180S-48

Output

Rated output voltage

24 V

48 V

Rated output current

7.5 A

3.8 A

Rated power output

180 W

180 W

Peak current

9 A

4.6 A

Circuit voltage fluctuation rate

±0.5 %

±0.5 %

Load voltage fluctuation rate

±1 %

±1 %

Ripple

150 ㎷ max

240 ㎷ max

Ambient temperature fluctuation

±1 %

±1 %

Running time

500 ㎳ max (110 V AC, Io=100 %)

Remaining time

30 ㎳ min (110 V AC, Io=100 %)

Voltage fluctuation range

22.6 - 27.6 V

45.2 - 50.1 V

Voltage setting range

±1 % max (Rated output voltage)

Input

Input voltage

100 - 120 V AC / 200 – 240 V AC ※ Auto-select input

Input frequency

50 - 60 ㎐ (47 - 63 ㎐)

Current (A)

110 V AC

3.3

3.3

220 V AC

1.95

1.95

Efficiency

220 V AC

92 %

92 %

Inrush current

110 V AC

20 A Typ. (Ta=25 ℃, Io=100 % at Cold start)

220 V AC

40 A Typ. (Ta=25 ℃, Io=100 % at Cold start)

Leakage current

110 V AC

0.35 ㎃ max

220 V AC

0.75 ㎃ max

Protection function

Over current protection

Protective function performed within 110 ~ 200 % of the rated output current

Over voltage protection

30 - 34 V

59 - 63 V

Overheating protection

Protection circuit is in operation when PWM controller's junction temperature
is over 135~140℃

Protection of output short

Auto Re-start

DC OK Signal

Green LED (ON when output voltage is normal)

DC OK Output

Relay output (ON when rated output is over 85%),
250 V AC 1 A max, 30 V DC 1 A max)

ETC

Dielectric strength

2,700 V AC for 1 min, Detection current = 10 ㎃, (Input – Output)

1,500 V AC for 1 min, Detection current = 10 ㎃, (Input . FG)

500 V AC for 1 min, Detection current = 10 ㎃, (Output – FG)

500 V AC for 1 min, Detection current = 10 ㎃, (Output . DC OK)

Insulation resistance

50 ㏁ min. (Input – Output, FG), (Output – FG, DC OK)

Environment

Ambient temperature

- 25 ~ +70 ℃ (Refer to the derating curve of output load)

Ambient humidity

20 ~ 90 % RH (With no condensation)

Storage temperature

- 40 ~ +85 ℃ (With no condensation)

Vibration resistance

10 - 55 ㎐, peak amplitude 0.375 ㎜, 2 hours for each of 3 directions
(DIN Rail is installed without applying voltage)

Shock resistance

150 ㎨, 3 times for each of 6 directions (State of packing)

Weight

682 g

680 g

Model

Code

Description

DPS-

DPS Power supply (DIN Rail Type)

Power output

15

15 W

30

30 W

50

50 W

75

75 W

100

100 W

120

120W

180

180 W

240

240 W (※ Only DPS-240S-12 : 216 W)

Number of output voltage

S

1 Output (Single output)

Output voltage classification

48

48 V DC (DPS-15S, DPS-30S, DPS-50S Exclude)

24

24 V DC

15

15 V DC (DPS-75S, DPS-100S, DPS-120S, DPS-180S, DPS-240S Exclude)

12

12 V DC (DPS-180S Exclude)

5

5 V DC (DPS-75S, DPS-100S, DPS-120S, DPS-180S, DPS-240S Exclude)
