Cảm biến quang Hanyoung PTX-R1A

986,000 VNĐ
Liên hệ 094 788 1820
Hãng sản xuất: Hanyoung
Dòng series: PTX Series
Danh mục sản phẩm: Cảm biến

CẢM BIẾN QUANG HANYOUNG PTX-R1A

Tổng quan sản phẩm

Loạt PTX - Kết nối kiểu khối đầu cuối để đi dây thuận tiện

- Dải điện áp cung cấp khác nhau (24-240V DC / AC, 12-24V DC).

- Phát hiện khoảng cách xa

- Có chức năng hẹn giờ.

- Cấu trúc bảo vệ Ip66.



Thông số kỹ thuật



Model

Power built-in

Normal type

PTX-T15A

PTX-M7A

PTX-R1A





Timer built-in type

PTX-T15A-T

PTX-M7A-T

PTX-R1A-T





Sensing type

Through beam type

Retro reflection type

Diffuse reflection type





Sensing distance

15m

7m

1m





Sensing object

Ø20 above
(Opaque Object)

Ø60 above
(Opaque object)

200 x 200
(White paper with no gloss)





Power supply
voltage

Power built-in

24 - 240 V ac / dc ± 10 % 50/60



Amp bulit-in

12 - 24 V dc ± 10 %




Power consumption

Emitter

Max. 2W

Max. 2W



Transmitter

Max. 1W



Control output

Power built-in

Relay contact output (Contact composition 1a, 1b), Contact capacity : 30 V d.c 5 A / 250 V a.c 5 A resistive load, rated load life expectancy less than 100,000 times



Amp bulit-in

NPN/PNP open collector yield output at the same time, Load current : 150mA DC (Resistive load), NPN Residual voltage : Max. 1 V DC / PNP Residual voltage : Max. 2 V DC



Operation mode

Light ON/Dark ON are selectable by the selector switch



Response time

Power built-in

Max. 20 ms



Amp bulit-in

Max.1ms



Hysteresis

-

Less than 20 % of sensing distance



Indicator

Output indication : Red LED, Stability indication : Green LED



Sensitivity adjustment

Sensitivity adjusting volume built-in



Protective circuit

Power built-in

Surge protective circuit



Amp bulit-in

Protective circuits for power reverse connection and output break



Timer function built-in (Only corresponds to timer built-in type)

Select OFF Delay, ON Delay or One Shot Delay by using the ON/OFF switch. Delay Time : 0.1 ~ 5 sec adjust by the volume.



Ambient illumination

Sun light : 11,000 lx max, Incandescent lamp : 3,000 lx max



Ambient temperature

Operation : -20 ~ 60 ℃, Storage : -25 ~ 70 ℃(with no icing nor dew condensation)



Ambient humidity

35 ~ 85 % RH (with no icing nor dew condensation)



Degree of protection

IP66 (IEC standard)



Insulation resistance

Min 20 (standard on 500V d.c mega)



Dielectric strength

1500 V a.c (for 1min)



Vibration resistance

10 - 55 Hz Double amplitude: 1.5 mm, 2 hours to each of X, Y, Z directions



Shock resistance

500 (approx 50G), 3 times to each of X, Y, Z directions



Connection method

Terminal



Material

Case : ABS, Lens : PC



Weight

Max 80g



Accessories

Individual

-

Reflector

-





Common

Driver, Bracket, Bolt, Nut, Water-proof rubber, Wire holder





Model

Amp built-in type

Normal Type

PTX-T15B

PTX-T30B

PTX-M7B

PTX-R1B





Timer Built-in Type

PTX-T15B-T

PTX-T30B-T

PTX-M7B-T

PTX-R1B-T





Sensing Type

Through beam

Retro reflection

Diffuse reflection





Sensing distance

15 m

7 m

1 m





Detecting object

More than Ø20
(Opaqueobject)

More than Ø60
(Opaque object)

200 x 200
(White no glossy paper)





Power Supply voltage

12 - 24 V DC ± 10 %



Power consumption

Emitter : 35 max./
Receiver : 20 max.

45 max.



Control Output

NPN/PNP open collector yield output at the same time,
Load current : 150 DC (Resistive load)
NPN Residual voltage : Max 1V DC / PNP Residual voltage: Max 2V DC



Operation mode

Light ON/Dark ON are selectable by the selector switch



Response time

1 max.



Hysteresis

-

Less than 20%
of sensing distance



Light source

Output indication: Red LED, Stability indication: Green LED



Sensitivity adjustment

-

Sensitivity adjusting volume built-in



Timer function built-in
(Onlycorresponds to
timer built-in type)

Select OFF Delay, ON Delay or One Shot Delay by using the ON/OFF switch.
Delay Time: 0.1 ~ 5 sec adjust by the volume.



Ambient illumination

Sun light: Max 11,000lx, Incandescent lamp: Max 3,000lx



Ambient temperature

Operation temperature : -20 ~ 60 ℃, Storage temperature : -25 ~ 70 ℃
(with no icing nor dew condensation)



Ambient humidity

35 ~ 85 % RH (with no icing nor dew condensation)



Degree of protection

IP66 (IEC standard)



Insulation resistance

Min 20 (standard on 500V d.c mega)



Dielectric strength

1500 V a.c (for 1min)



Vibration resistance

10 - 55 Hz Double amplitude: 1.5 mm, 2 hours to each of X, Y, Z directions



Shock resistance

500 (approx 50 G), 3 times to each of X, Y, Z directions



Connection method

Terminal



Material

Case : ABS, Lens : PC



Weight

Max. 80g



Access ories

Individual

-

Reflector(HY-M5)

-





Common

Driver, Bracket, Bolt, Nut, Water-proof rubber, Wire holder

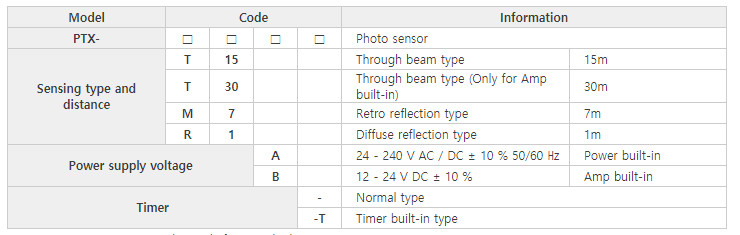

Bảng chọn mã sản phẩm

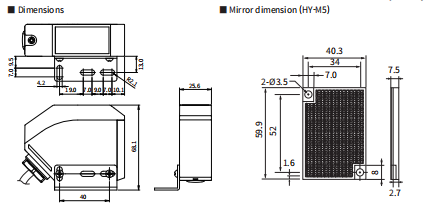

Kích thước

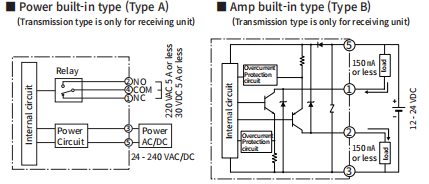

Sơ đồ đấu dây
